Specification Parameter
| Model | CelVitro™ 170IR |
| Cat. No. | ICB000170 |

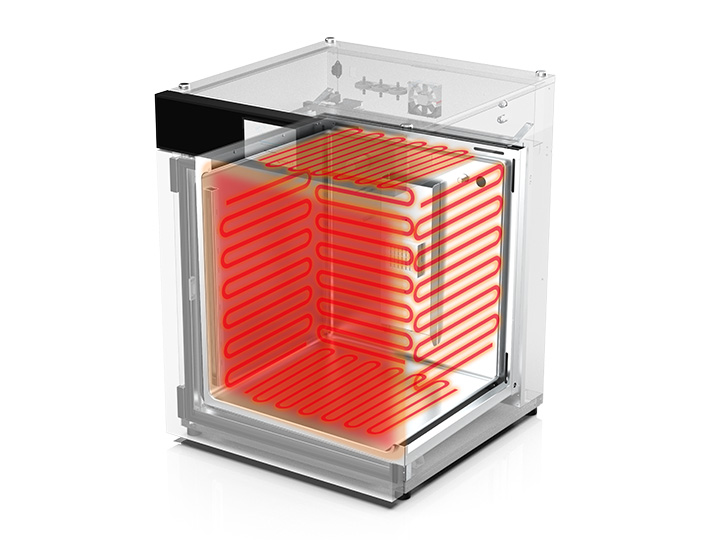

| Heating Method | Direct heat + Air jacket |
| Capacity | 170 L |
| Input Voltage | 110 V/220 V, 50/60 HZ |
| Power (standard configuration) |
<60 W/H (37℃) |
| Power (high temperature disinfection) |
<1500 W/H (180℃) |
| Convection | Fan |
| Heat Insulation | Fiberglass insulation |
| Display | 7-inch touch screen |
| Disinfect |
180℃ high temperature disinfection (HTD) |
| Chamber Humidity | Max. 97% RH |
| Inner Door Material | Tempered glass |
| Inner Door Type | Unsegmented inner door |
| Access Port | Inner diameter 30 mm |
| Chamber Material | 304 Stainless Steel |
| Humidification | Active humidification with external humidity reservoir |
| Noise | <50 dB |
| Alarm | CO₂ concentration alarm, high & low temperature alarm, door-opening alarm, humidity alarm, low water level alarm (optional), O₂ concentration alarm (optional) |
| Data Transfer | USB |
| Permission Amient Temperature |
5℃-35℃ |
| Inner Dimensions | 557×518×597 mm |
| Outer Dimensions | 718×744×956 mm |
| Weight (accessories excluded) |
≤80 kg |
Temperature Control
| Temperature range | Ambient+3℃~55℃ |
| Temperature Uniformity at 37°C | ±0.3℃ |
| Temperature Stability at 37°C | ±0.1℃ |
| Temperature Recovery Time (recover to 37°C after 30s door-opening) |
<5 minutes |
CO₂ Control
| CO₂ Senser | Dual IR sensor |
| CO₂ Concentration Range | 0-20% |
| CO₂ Accuracy | ±0.1% |
| CO₂ Concentration Recovery Time (recover to 5% after 30s door-opening) |
<4 minutes |
| HEPA Filter | Filter 99.97% of 0.22µm foreign particles |
| CO₂ Connector | Inner diameter 8 mm tube |
| CO₂ Pressure | 0.1 MPa (1.0 Bar) |
Configurable Specifications
| Door Handle Location | Left / Right |
| Wheel Type | Optional Caster (size: 40mm) |
| Number of Shelves | Standard：3Optional：6 or 10 |
| Tri-Gas (hypoxic culturing) |
Optional |
O₂ Control (Optional)
| O₂ Senser | Zirconia |
| O₂ Concentration Range | 1~21% |
| O₂ Accuracy | 0.10% |
| O₂ Connector | Inner diameter 8 mm tube |
| O₂ Pressure | 0.1 MPa (1.0 Bar) |
