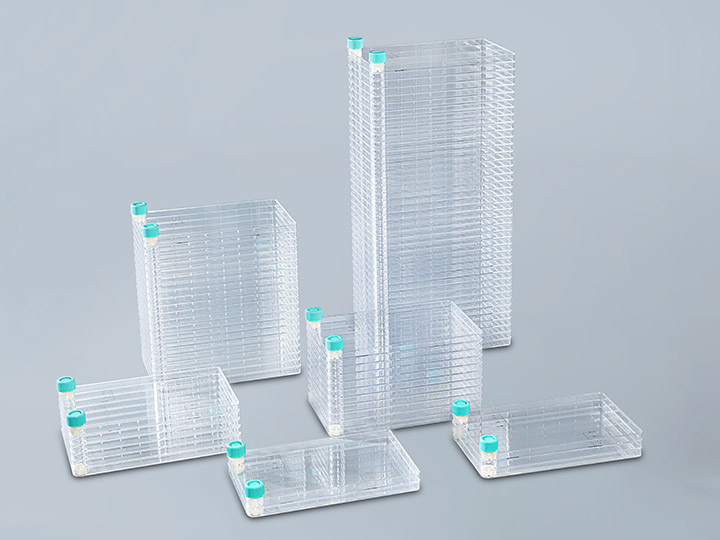

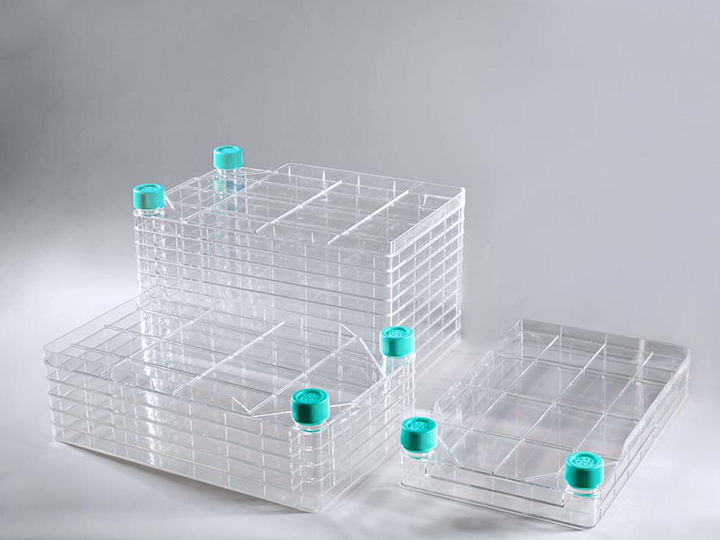

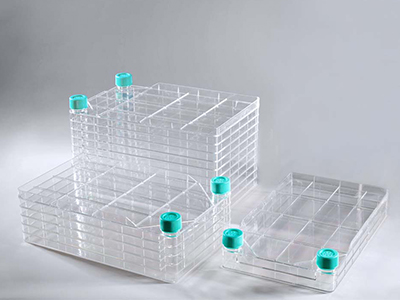

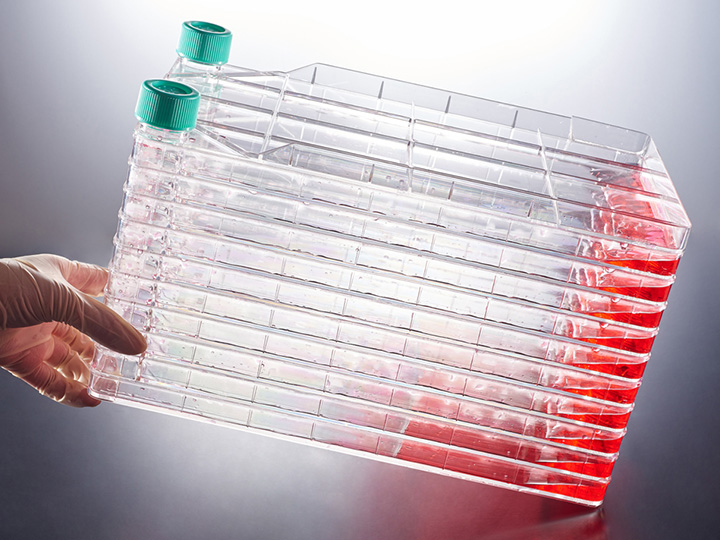

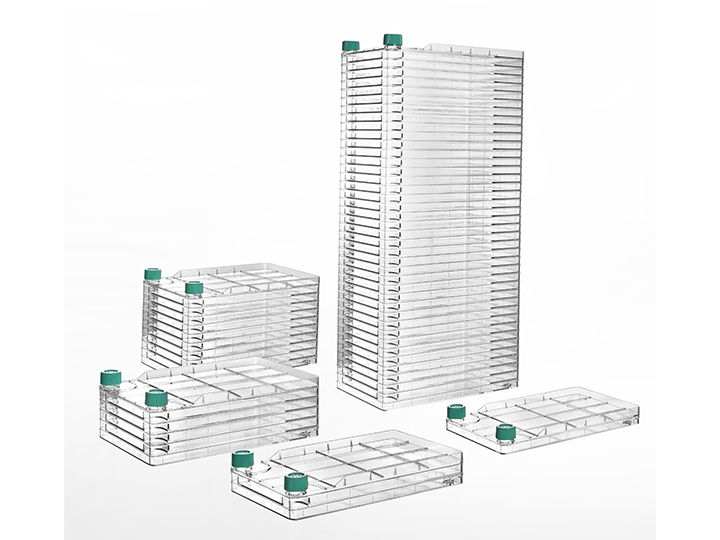

CellFac Multi-Layer Cell Culture System

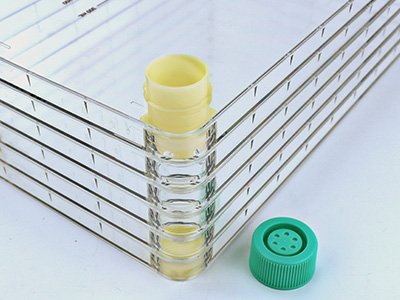

Cell factory (Large-mouth Embedded Ports)

Cat. No.	Layers	Growth Surface Area （cm²）	Working volume（mL)	Demension(mm)			Surface	Cap	Sterile	Qty. Per Bag	Qty. Per Case
Cat. No.	Layers	Growth Surface Area （cm²）	Working volume（mL)	L	W	H (Cap included)	Surface	Cap	Sterile	Qty. Per Bag	Qty. Per Case
UCF050001	1	642	130-200	336	207	60	N-TC-treated	Vent cap: 0.22µm, PTFE (2 additional plug sealed cap per case)	Y	1	8
UCF050002	2	1284	260-400	336	207	77			Y	1	6
UCF050004	4	2568	520-800	336	207	111			Y	1	4
UCF050005	5	3210	650-1000	336	207	128			Y	1	4
UCF050010	10	6420	1300-2000	336	207	213			Y	1	2
UCF050020	20	12840	2600-4000	336	207	384			Y	1	2

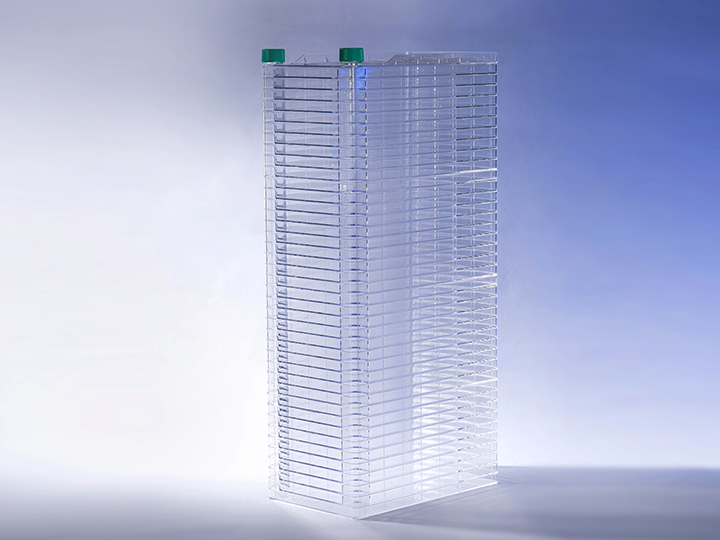

UCF250040	40	25680	5200-8000	336	207	725			Y	1	1
UCF053001	1	642	130-200	336	207	60	L-TC-treated		Y	1	8
UCF053002	2	1284	260-400	336	207	77			Y	1	6
UCF053004	4	2568	520-800	336	207	111			Y	1	4
UCF053005	5	3210	650-1000	336	207	128			Y	1	4
UCF053010	10	6420	1300-2000	336	207	213			Y	1	2
UCF053020	20	12840	2600-4000	336	207	384			Y	1	2
UCF053040	40	25680	5200-8000	336	207	725			Y	1	1
UCF051001	1	642	130-200	336	207	60	TC-treated		Y	1	8
UCF051002	2	1284	260-400	336	207	77			Y	1	6
UCF051004	4	2568	520-800	336	207	111			Y	1	4
UCF051005	5	3210	650-1000	336	207	128			Y	1	4
UCF051010	10	6420	1300-2000	336	207	213			Y	1	2
UCF051020	20	12840	2600-4000	336	207	384			Y	1	2
UCF251040	40	25680	5200-8000	336	207	725			Y	1	1
UCF054001	1	642	130-200	336	207	60	S-TC-treated		Y	1	8
UCF054002	2	1284	260-400	336	207	77			Y	1	6
UCF054004	4	2568	520-800	336	207	111			Y	1	4
UCF054005	5	3210	650-1000	336	207	128			Y	1	4
UCF054010	10	6420	1300-2000	336	207	213			Y	1	2
UCF054020	20	12840	2600-4000	336	207	384			Y	1	2
UCF054040	40	25680	5200-8000	336	207	725			Y	1	1

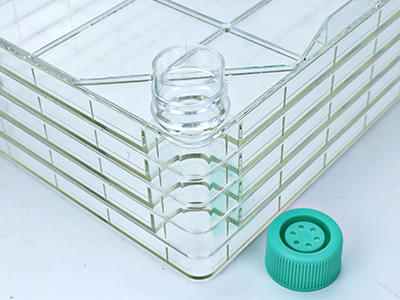

Cell factory (Large-mouth Molded Ports )

Cat. No.	Layers	Growth Surface Area （cm²）	Working volume（mL)	Demension(mm)			Surface	Cap	Sterile	Qty. Per Bag	Qty. Per Case
Cat. No.	Layers	Growth Surface Area （cm²）	Working volume（mL)	L	W	H (Cap included)	Surface	Cap	Sterile	Qty. Per Bag	Qty. Per Case
UCF010001	1	656	130-200	335	205	48	N-TC-treated	Vent cap: 0.22µm, PTFE (2 additional 0.22 µm PTFE vent cap per case)	Y	1	8
UCF010002	2	1296	260-400	335	205	65			Y	1	6
UCF010004	4	2576	520-800	336	206	99			Y	1	4
UCF010005	5	3216	650-1000	335	205	116			Y	1	4
UCF010010	10	6416	1300-2000	335	205	200			Y	1	2
UCF010020	20	12816	2600-4000	335	205	370			Y	1	2
UCF010040	40	25616	5200-8000	335	205	540			Y	1	1
UCF013001	1	656	130-200	335	205	48	L-TC-treated	Vent cap: 0.22µm, PTFE (2 additional plug sealed cap per case)	Y	1	8
UCF013002	2	1296	260-400	335	205	65			Y	1	6
UCF013004	4	2576	520-800	336	206	99			Y	1	4
UCF013005	5	3216	650-1000	335	205	116			Y	1	4
UCF013010	10	6416	1300-2000	335	205	200			Y	1	2
UCF013020	20	12816	2600-4000	335	205	370			Y	1	2
UCF013040	40	25616	5200-8000	335	205	540			Y	1	1
UCF011001	1	656	130-200	335	205	48	TC-treated	Vent cap: 0.22µm, PTFE (2 additional 0.22 µm PTFE vent cap per case)	Y	1	8
UCF011002	2	1296	260-400	335	205	65			Y	1	6
UCF011004	4	2576	520-800	336	206	99			Y	1	4
UCF011005	5	3216	650-1000	335	205	116			Y	1	4
UCF011010	10	6416	1300-2000	335	205	200			Y	1	2
UCF011020	20	12816	2600-4000	335	205	370			Y	1	2
UCF011040	40	25616	5200-8000	335	205	540			Y	1	1
UCF014001	1	656	130-200	335	205	48	S-TC-treated	Vent cap: 0.22µm, PTFE (2 additional plug sealed cap per case)	Y	1	8
UCF014002	2	1296	260-400	335	205	65			Y	1	6
UCF014004	4	2576	520-800	336	206	99			Y	1	4
UCF014005	5	3216	650-1000	335	205	116			Y	1	4
UCF014010	10	6416	1300-2000	335	205	200			Y	1	2
UCF014020	20	12816	2600-4000	335	205	370			Y	1	2
UCF014040	40	25616	5200-8000	335	205	540			Y	1	1

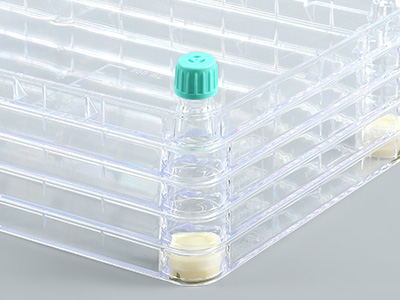

Cell factory (Small-mouth Molded Ports)

Cat. No.	Layers	Growth Surface Area （cm²）	Working volume（mL)	Demension(mm)			Surface	Cap	Sterile	Qty. Per Bag	Qty. Per Case
Cat. No.	Layers	Growth Surface Area （cm²）	Working volume（mL)	L	W	H (Cap included)	Surface	Cap	Sterile	Qty. Per Bag	Qty. Per Case
UCF061001	1	642	130-200	336	207	59	N-TC-treated	Vent cap: 0.22µm, PTFE (2 additional plug sealed cap per case)	Y	1	8
UCF061002	2	1284	260-400	336	207	76			Y	1	6
UCF061004	4	2568	520-800	336	207	110			Y	1	4
UCF061005	5	3210	650-1000	336	207	127			Y	1	4
UCF061010	10	6420	1300-2000	336	207	212			Y	1	2
UCF061020	20	12840	2600-4000	336	207	383			Y	1	2
UCF061040	40	25680	5200-8000	336	207	724			Y	1	1
UCF063001	1	642	130-200	336	207	59	L-TC-treated	Vent cap: 0.22µm, PTFE (2 additional plug sealed cap per case)	Y	1	8
UCF063002	2	1284	260-400	336	207	76			Y	1	6
UCF063004	4	2568	520-800	336	207	110			Y	1	4
UCF063005	5	3210	650-1000	336	207	127			Y	1	4
UCF063010	10	6420	1300-2000	336	207	212			Y	1	2
UCF063020	20	12840	2600-4000	336	207	383			Y	1	2
UCF063040	40	25680	5200-8000	336	207	724			Y	1	1
UCF060001	1	642	130-200	336	207	59	TC-treated	Vent cap: 0.22µm, PTFE (2 additional plug sealed cap per case)）	Y	1	8
UCF060002	2	1284	260-400	336	207	76			Y	1	6
UCF060004	4	2568	520-800	336	207	110			Y	1	4
UCF060005	5	3210	650-1000	336	207	127			Y	1	4
UCF060010	10	6420	1300-2000	336	207	212			Y	1	2
UCF060020	20	12840	2600-4000	336	207	383			Y	1	2
UCF060040	40	25680	5200-8000	336	207	724			Y	1	1
UCF064001	1	642	130-200	336	207	59	S-TC-treated	Vent cap: 0.22µm, PTFE (2 additional plug sealed cap per case)	Y	1	8
UCF064002	2	1284	260-400	336	207	76			Y	1	6
UCF064004	4	2568	520-800	336	207	110			Y	1	4
UCF064005	5	3210	650-1000	336	207	127			Y	1	4
UCF064010	10	6420	1300-2000	336	207	212			Y	1	2
UCF064020	20	12840	2600-4000	336	207	383			Y	1	2
UCF064040	40	25680	5200-8000	336	207	724			Y	1	1

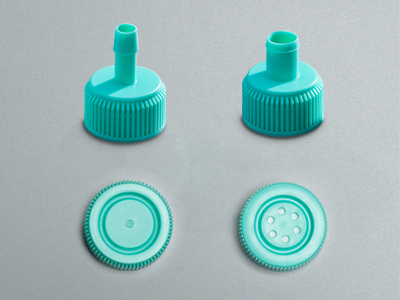

Cell factory Accessories

Cat. No.	Name	Description	Qty. Per Bag	Qty. Per Case
UCF428001	MPC Transfer Cap	Male MPC, Light Green, Sterile	1	10
UCF428002	MPC Transfer Cap	Female MPC, Light Green, Sterile	1	10
UCF411002	Plug seal Cap	Light Green, Sterile	1	10
UCF412002	Vent Cap	Light Green, Sterile	1	10
UCF413002	Large Hole Conversion Cover	Conversion cover, filter connection cover, connects to a hose with an inner diameter of 3/8 inch ( 9.5 mm ), sterile	1	10
UCF414002	Small Hole Conversion Cover	Conversion cover, filter connection cover, large mouth to small mouth, sterile	1	10
UCF418001	Hose Clamp	Clamps hoses with an outer diameter of 12 mm-18 mm 1 per bag, 10 per case	1	10
UCF415001	Adapter	Connects with #17 hose and 30 mm filter	1	10
UCF419001	Hose	3/8 inch (9.5 mm) inner diameter and 1/2 inch (12.7 mm) outer diameter, 10m, sterile	1	1
UCF421001	Hose	#17 hose(inner diameter 6.4 mm),10m, sterile	1	1
UCF416001	Filter Combination Cover	30 mm, PTFE 0.22 µm filter , # 17 hose , small port conversion cover, 1 set	1	10
UCF417001	Filter Combination Cover	50 mm, PTFE, 0.22 µm filter, 3 / 8 inch (9.5 mm) inner diameter hose, large mouth conversion cover, 1 set	1	10
PTF205030	Syringe Filter	30 mm, PTFE 0.2 µm, white shell, sterile	45	360
PTF255050	Syringe Filter	50 mm, PTFE 0.2 µm, natueal shell, sterile, Single Stepped Barb	10	200
